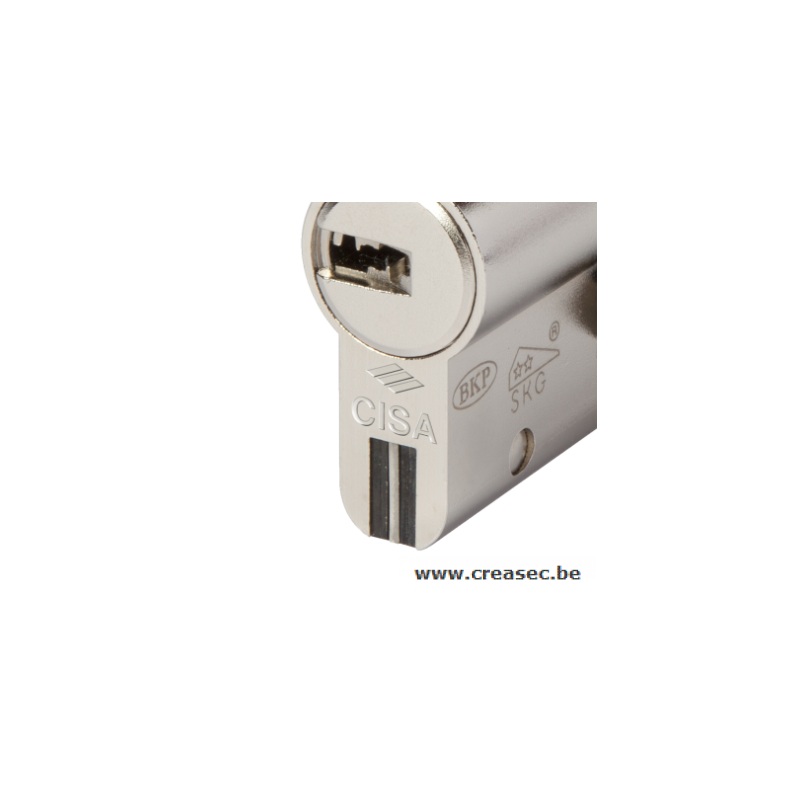

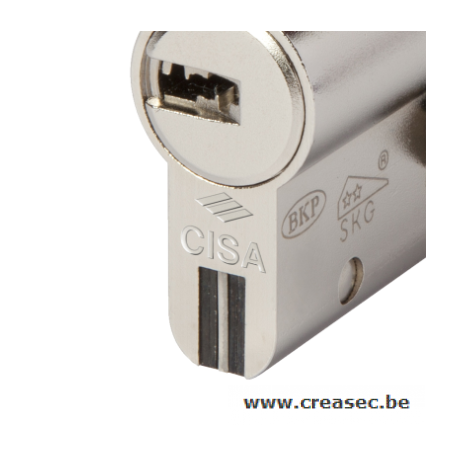

Cylindre Cisa AP4S sur code

CYLINDER AP4

SECURITY

• Attack resistance
• SNAP RESISTANT PATENT EP1583878
  Certified resistance against tearing and pulling, thanks to SNAP RESISTANT patented technology: dual-material segment pack in hardened steel and stainless steel central segment visible from the outside on both sides of the cylinder
• BKP PATENT PCT/WO2007/074163A1. Certified protection against bumping, thanks to BKP (Bump Key Power) patented technology
• Patent PCT/IT2016/000093. High resistance to picking, thanks to the system with new floating drivers.
• Certified drill resistance, thanks to the key bitting system in hardened steel.
• High resistance to forced entry using the impression or wax technique, thanks to the special configuration of the springs.

TECHNICAL FEATURES

• 12-pin key-bitting system (6 active, 5 passive, 1 patented pin).
• Brass body with segment pack along the whole length of the cylinder (excluding single cylinder, various cylinders and rim cylinders).
• Brass plugs.
• Clutch-type cam in self-lubricating sintered DIN steel.
• Hardened steel pins and drivers.
• Phosphor bronze and steel springs.
• 100,000 cycles (in compliance with EN 1303: 2015 Durability: 6).

KEYS:

SECURITY

• Key Related Security
• PATENT PCT/IT2013/000297-AP4 Protected key duplication, thanks to AP4 System technology, keys can only be duplicated at CISA Solution Partners or CISA
• 3D trademark: No. 1276648
• Greater control over key cloning, thanks to the protected mobile element, providing unlimited protection over time.
• Security Card with authorised key duplication only at CISA Solution Partners and CISA.
• 11-pin key bitting system on 3 rows.
• Offers excellent access management potential.
•  E.g. 132,000 different cylinders with one master key

TECHNICAL FEATURES

• Flat reversible.
• In nickel silver alloy.
• Numerical code on key bow.
• Key thickness 2.9 mm.
• Depth 0.48 mm.
